Universal joint
Flexel CM DN 350 x 170mm
Universal expansion joint
- Unrestrained design – pressure force acts on the piping
- Available in two configurations: flanged or with weld ends.
- Typical bellows materials: 316SS, 321SS (H), 625 (LCF), 825, Titanium.
- Typical flange or pipe end materials: S275, 304SS, 316SS, CrMo, Titanium.
- Designed and built according to: EJMA 10, B31.3, EN14917, PED.
FLEXEL CM DN 350 X 170MM
Single bellow
WELD ENDS
- •Used to absorb axial expansion, and small lateral and angular movements.
FLEXEL CM DN 350 X 185MM PN10
Single bellow
FLANGED
- Used to absorb axial expansion, and small lateral and angular movements.

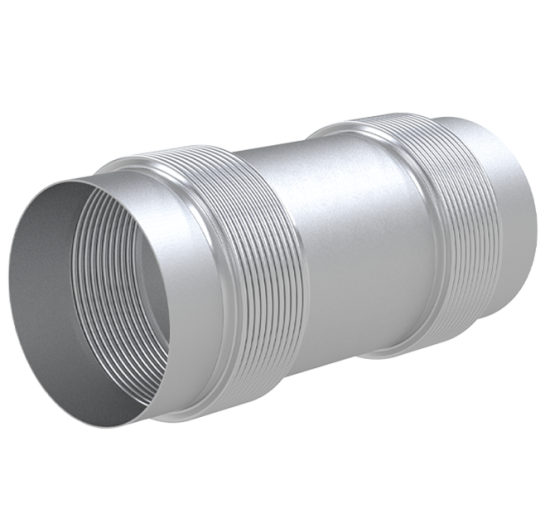

FLEXEL CM DN 350 X 600MM
Double bellows
WELD ENDS
- Used to absorb large movements in any axis: axial, lateral, or angular.
FLEXEL CM DN 350 X 600MM PN10
Double bellows
FLANGED
- Used to absorb large movements in any axis: axial, lateral, or angular.
We will help you choose the expansion joint that best suits your needs
